Commercial TAB Testing & Life Safety | Testing, Adjusting and Balancing

What We Test & Certify

✓ Testing, Adjusting and Balancing (TAB): Packaged RTUs, split systems, fan coils, VAVs, and zone balancing within ±5% to ±10% tolerance per engineer specifications.
✓ Life Safety & Smoke Control Interlocks: Duct smoke detector testing, fire alarm shutdown verification, and life-safety compliance.
✓ Restaurant Hoods & Make-Up Air: Commercial kitchen exhaust hoods, make-up air units, and building pressure balancing.
✓ Competitive Pricing & Weekend Service Available: Fair, transparent fixed-fee quotes with Saturday/Sunday scheduling so we never disrupt operating businesses or tight closeouts.

Inspector-Ready Report Package

✓ Design vs. Actual CFM Schedules: Clear pass/variance tables for every supply, return, and exhaust device.
✓ Custom-Annotated M-Sheet Plan Atlas: We custom-build color-coded Marker IDs and callout overlays directly onto your mechanical drawings for the TAB report.
✓ On-Site Equipment Verification: Rooftop unit nameplates, model/serial verification, and field photographs included.
✓ Certified Credentials & Calibration: Official certification and current instrument calibration documentation included for city inspector and engineer sign-off.

Sample Deliverable Preview

Inside a Rainwater TAB & Life Safety Report

City inspectors and mechanical engineers get a clean, self-contained package: pass/variance CFM schedules, custom-annotated M-sheet plan atlases, and photographic rooftop verification.

Report Excerpt • Section 1

Field-Recorded Supply & Make-Up Air Schedule (Sample Clip)

ALL TESTED TERMINALS PASS (±5% to ±10%)

Marker ID	System / Zone	Drawing Tag	Design CFM	Actual CFM	Variance	Status
M1-A-K1	Cookline Make-Up Air (MUA-1)	16x16 / 10" Neck	1,175	1,148	-2.3%	PASS
M1-A-K2	Cookline Make-Up Air (MUA-1)	16x16 / 10" Neck	1,175	1,210	+3.0%	PASS
M1-A-S1	Kitchen Zone Supply (FC-1)	CD-1 / 12" Neck	620	628	+1.3%	PASS
M1-A-S17	Main Dining / Market Zone	CD-1 / 12" Neck	625	612	-2.1%	PASS
M1-A-S20	High-Volume Supply Terminal	CD-2 / 16" Neck	1,233	1,245	+1.0%	PASS

🎯

Custom-Created TAB Report Annotations: All color-coded Marker IDs (M1-A-S1, M1-A-K1, EF-2), equipment callout badges, and zone highlights shown on these drawings were created specifically for our TAB report—allowing city inspectors and engineers to immediately locate every tested terminal and rooftop unit on the plans.

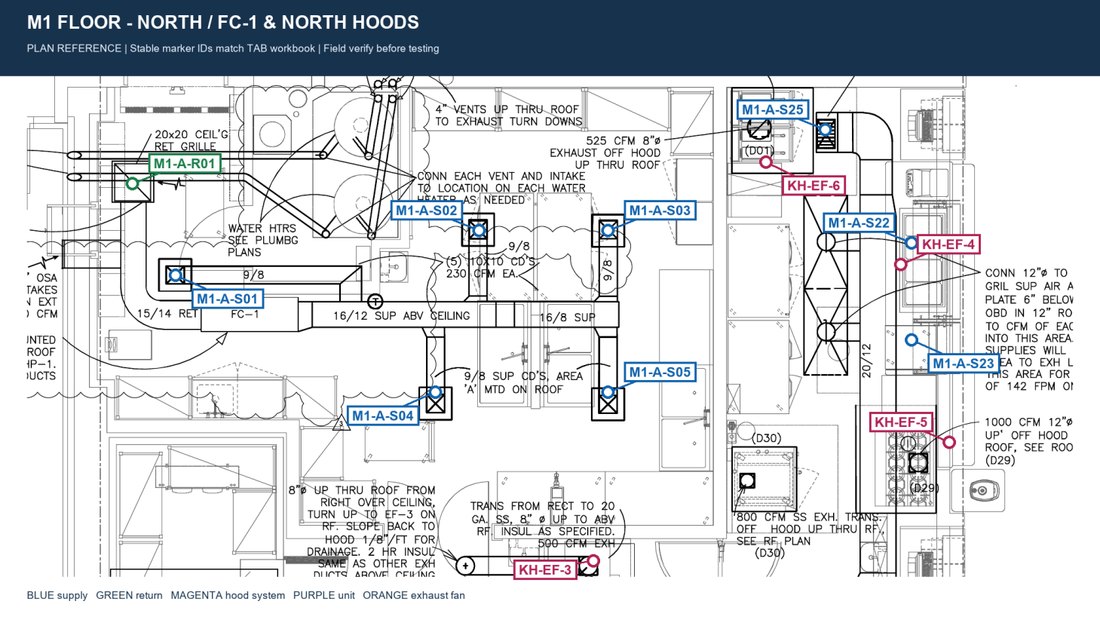

Plan Atlas Clip • M1 Detail A

Color-Coded Cookline, Hood & Make-Up Air Mapping

Overlays Created for TAB Report

Annotated Commercial Kitchen Hood and Make-Up Air Plan Atlas

Plan Atlas Clip • Roof Mechanical

Rooftop Exhaust Fans, RTUs & Make-Up Air Layout

Overlays Created for TAB Report

Annotated Rooftop HVAC and Exhaust Fan Plan Atlas

Included in Every Report

On-Site Rooftop Equipment & Curb Verification

100% Field-Verified • Metro Phoenix, East Valley & Tucson

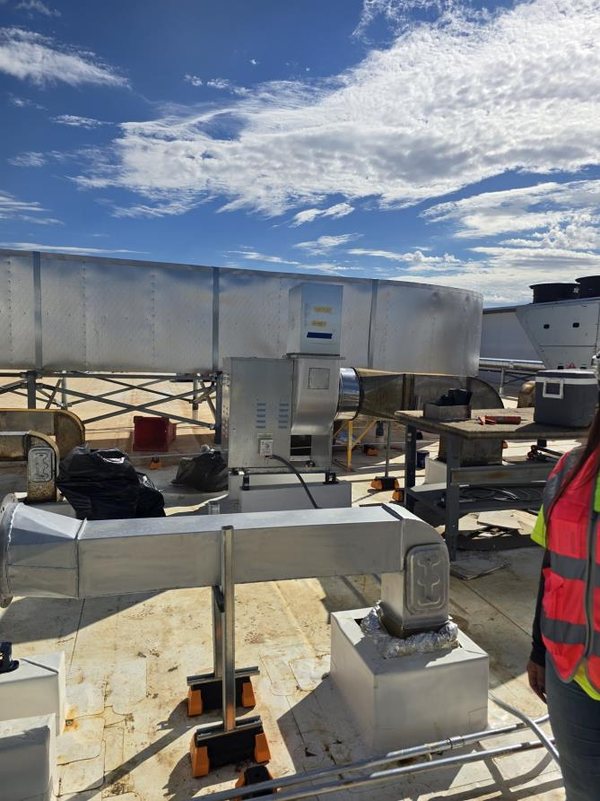

Exhaust Fan & Louvered Curb

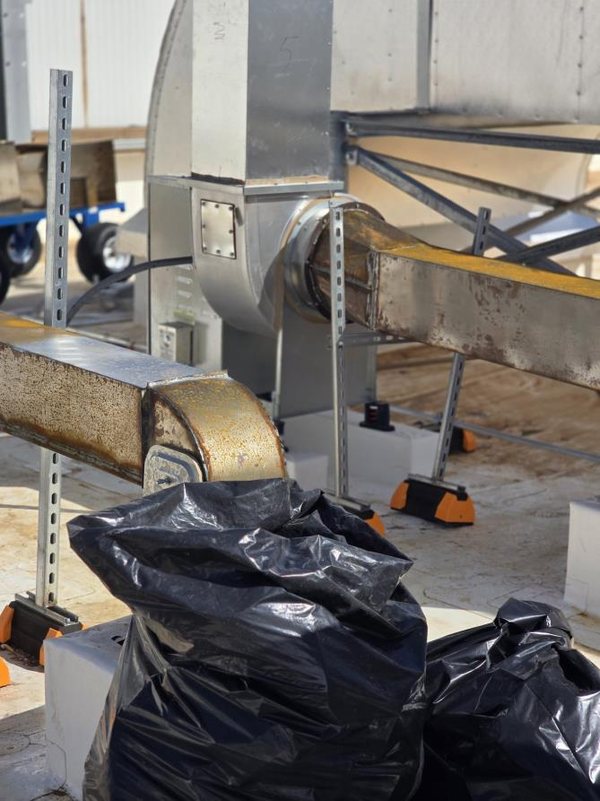

Upblast Kitchen Exhaust Fan & Disconnect Verification

Upblast Exhaust & Disconnect

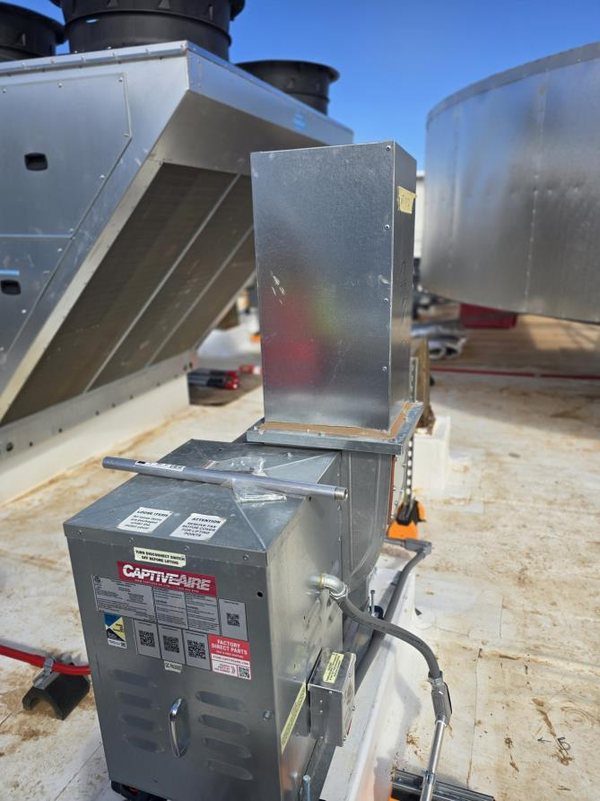

Make-Up Air & Hood Exhaust

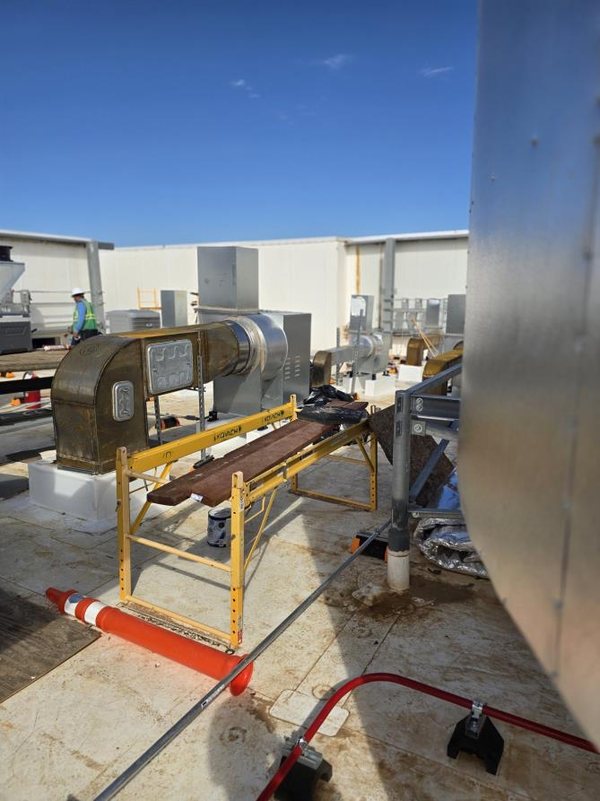

Multi-Unit Rooftop HVAC and Exhaust Array

Rooftop Mechanical Array

Same-Day Estimating • Fixed-Fee Quotes

Get a Fast Quote & Upload Plans

Upload your mechanical drawings (M-sheets), specifications, or equipment schedules. We typically turn around fixed-fee TAB quotes within 2 to 4 business hours.
